BLT-100

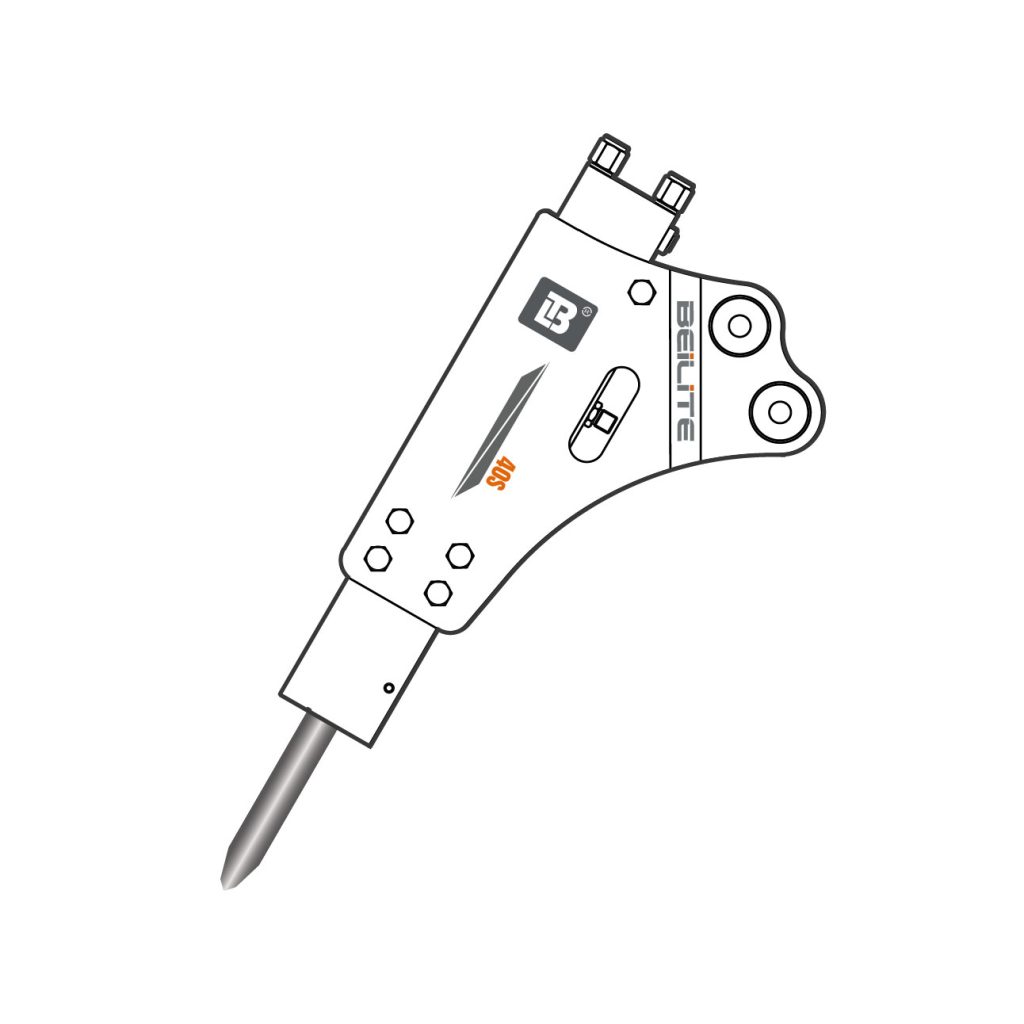

The Beilite BLT-100 Side Mounted Hydraulic Breaker provides powerful impact force tailored for mid-sized excavators. Part of the professional range, it features an optimized triangular design that enhances stability and material clearance efficiency. Its simplified structure and reduced component count ensure superior reliability and easier maintenance for demanding construction applications.

Key Advantages

  • Enhanced Structural Stability: Low-profile mounting improves operational control.
  • High-Performance Breaking: 350-700 BPM impact rate with a 100 mm chisel diameter.
  • Reduced Maintenance: Simplified design minimizes potential failure points.
  • Efficient Debris Clearance: Triangular configuration allows better material sweeping.
  • Heavy-Duty Construction: 835 kg robust build for extended service life.
Get Quote Now

Parameter

Side Mounted Type Total Length2001mm
Side Mounted Type Total Weight835kg
Chisel Diameter100mm
Working Oil Flow80~110l/min
Relief Pressure210bar
Working Pressure150~170bar
Back Head Nitrogen Pressure14~17bar
Accumulator Nitrogen Pressure55~60bar
Impact Rate350~700bpm
Oil Hose Diameter3/4inch
Chisel Length1000mm
Applicable Excavator10~14t

Technical Specifications

ParameterValue
ModelBLT-100 Triangular Hydraulic Breaker
Total Length (Side Mount)2001mm
Total Weight835kg
Chisel Diameter100mm
Chisel Length1000mm
Working Oil Flow80-110 l/min
Relief Pressure210bar
Working Pressure150-170bar
Back Head Nitrogen Pressure14-17bar
Accumulator Nitrogen Pressure55-60bar
Impact Rate350-700bpm
Oil Hose Diameter3/4inch
Applicable Excavator Weight10-14t

Primary Applications

  • Quarry operations and rock excavation
  • Road construction and asphalt removal
  • Demolition of reinforced concrete structures
  • Foundation work and trench digging
  • Mining and tunneling applications

Compatible Excavator Models

  • Doosan: DX140
  • Kato: HD512
  • JCB: JS110 / 130
  • Caterpillar: 311 / 312D / 313D / 314
  • Case: CX130 / 135
  • LiuGong: LG915 / LG150
  • Hitachi: ZAX120 / 130W
  • Sany: SY115 / 135-8
  • Kobelco: SK100 / 115 / 120 / 135 / 140
  • Volvo: EC120 / 130 / 140
  • Hyundai: R110 / 130
  • Komatsu: PC100 / 110 / 120-6 / 120-7 / 130-7
  • XCMG: XE130
  • Takeuchi: TB1140
  • Sumitomo: SH100 / 120 / 125 / 130 / 135

Why Choose Our Hydraulic Rock Breakers?

The BLT-100 Side Mounted Hydraulic Hammer stands out in its class with superior power-to-weight ratio and exceptional material clearance capabilities. Its optimized hydraulic system ensures efficient energy transfer while the rugged construction guarantees longevity in tough working environments. The triangular design provides better visibility and control compared to conventional hydraulic demolition hammers.

Standard Accessories Included with Each Breaker

  • 2 pcs chisels
  • 2 pcs oil hoses
  • 1 pc seal kit
  • 1 pc N₂ gas bottle
  • 1 pc toolbox
