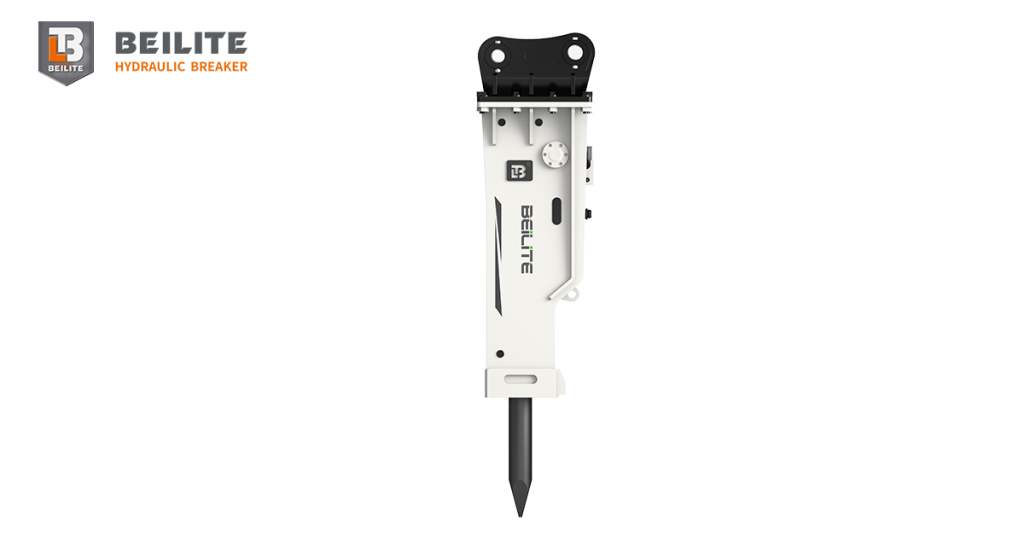

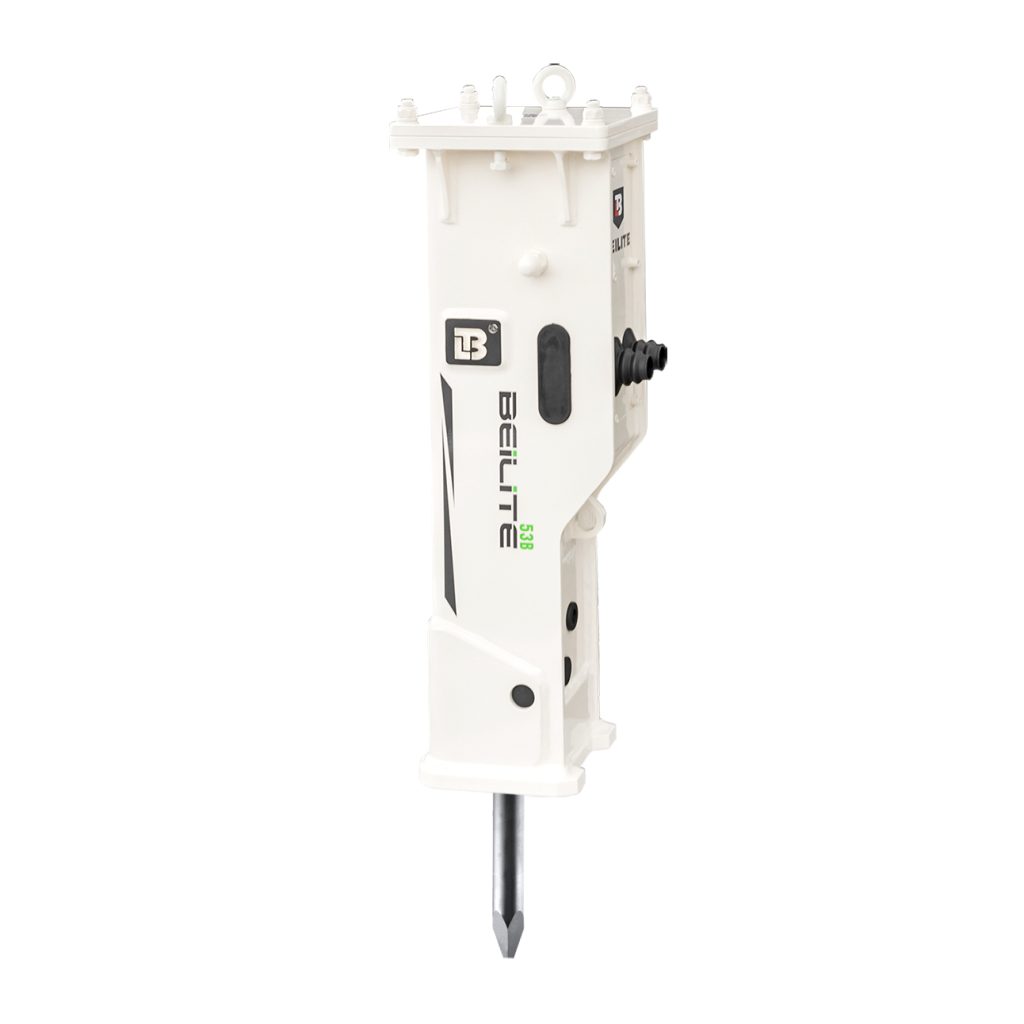

Top Mounted Hydraulic Breaker BLT53

BLT-195

Product Overview
The BLT-195 Tower Type Hydraulic Breaker is an advanced, heavy-duty model designed for 50–60 ton excavators. It delivers exceptional vertical impact power and maintains outstanding flexibility for horizontal and trenching operations. Combining strength, precision, and durability, it is ideal for professional contractors engaged in demanding demolition and construction tasks.

Key Advantages

  • Optimized Structural Design: Tower configuration maximizes force transmission with minimal energy loss.
  • Enhanced Operational Range: Offers 15% wider working angles than standard breakers.
  • Durable Construction: High-quality materials and smart engineering ensure long service life.
  • Precision Impact System: Provides 100–140 blows per minute with consistent power.
  • Versatile Performance: Suitable for diverse and challenging working environments.



Parameter

Top Mounted Type Total Length4016mm
Top Mounted Type Total Weight6242kg
Chisel Diameter195mm
Working Oil Flow260~310l/min
Relief Pressure310bar
Working Pressure260~280bar
Back Head Nitrogen Pressure30~33bar
Accumulator Nitrogen Pressure65~70bar
Impact Rate100~140bpm
Oil Hose Diameter1¼inch
Chisel Length1600mm
Applicable Excavator50~60t

Technical Specifications

ParameterValue
Total Length (Top Mounted)4016mm
Total Weight6242kg
Chisel Diameter195mm
Working Oil Flow260~310l/min
Relief Pressure310bar
Working Pressure260~280bar
Back Head Nitrogen Pressure30~33bar
Accumulator Nitrogen Pressure65~70bar
Impact Rate100~140bpm
Oil Hose Diameter1¼inch
Chisel Length1600mm
Applicable Excavator50~60t
  • Large-scale building demolition projects
  • Tunnel excavation and underground construction
  • Marine and underwater demolition work
  • Quarry operations and rock breaking
  • Infrastructure development and road work

Compatible Excavator Brands & Models

  • Doosan: DX480 / 490 / 520
  • JCB: JS450
  • Caterpillar: 345 / 349D / 349D2L
  • Case: CX460
  • Hitachi: ZAX450 / 470 / 490 / EX550 / 600
  • Sany: SY465 / SY465H-8 / SY485
  • Kobelco: SK450 / 480
  • Volvo: EC460 / 480
  • Hyundai: R455 / 485
  • Komatsu: PC450 / 460 / PC500 (Standard & Short Arm)
  • XCMG: XE470
  • Sumitomo: SH450

Standard Accessories Included with Each Breaker

  • 2 pcs chisels
  • 2 pcs oil hoses
  • 1 pc seal kit
  • 1 pc N₂ gas bottle
  • 1 pc toolbox
