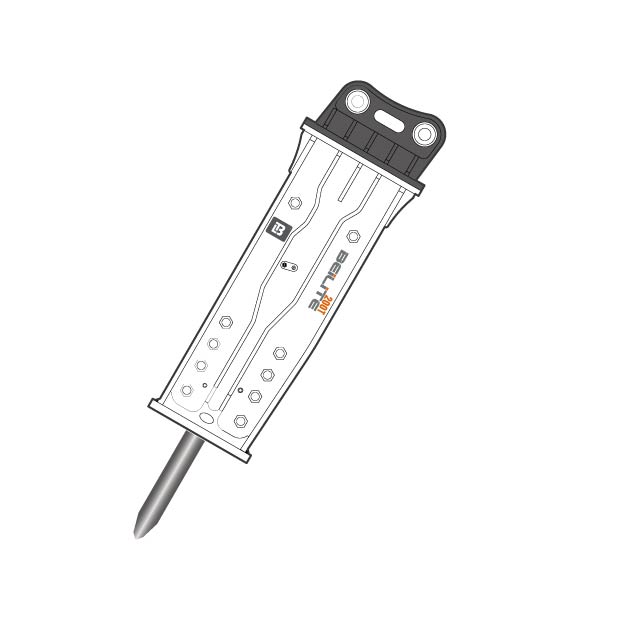

BLT-210

Product Overview
The BLT-210 Tower Type Hydraulic Breaker is a high-performance solution built for heavy demolition and excavation projects. Engineered with an elevated mounting point for direct force application, it delivers powerful vertical impact while maintaining excellent flexibility for horizontal and trenching operations. Designed for professional contractors, it ensures reliability, precision, and durability across demanding work environments.

Key Features of Our Hydraulic Breakers

  • Enhanced Structural Stability: Concentrated impact force enables efficient material breaking.
  • Superior Operational Flexibility: Wide working angles allow versatile positioning.
  • Optimized Maintenance Design: Easy service access extends equipment lifespan.
  • High-Power Performance: Built for demanding demolition applications.
  • Precision Engineering: Delivers 90–120 consistent blows per minute for controlled and effective breaking.

Parameter

Top Mounted Type Total Length4447mm
Top Mounted Type Total Weight8877kg
Chisel Diameter210mm
Working Oil Flow340~400l/min
Relief Pressure350bar
Working Pressure280~300bar
Back Head Nitrogen Pressure32~35bar
Accumulator Nitrogen Pressure75~80bar
Impact Rate90~120bpm
Oil Hose Diameter1½inch
Chisel Length1800mm
Applicable Excavator60~75t

Technical Specifications

ParameterValue
Total Length (Top Mounted Type)4447mm
Total Weight (Top Mounted Type)8877kg
Chisel Diameter210mm
Working Oil Flow340~400l/min
Relief Pressure350bar
Working Pressure280~300bar
Back Head Nitrogen Pressure32~35bar
Accumulator Nitrogen Pressure75~80bar
Impact Rate90~120bpm
Oil Hose Diameter1½inch
Chisel Length1800mm
Applicable Excavator Weight60~75t

Ideal Applications for Hydraulic Breakers

  • Building demolition and structural breakdown
  • Tunnel construction and underground work
  • Underwater demolition projects
  • Quarry and mining operations
  • Road construction and pavement breaking
  • Trenching and foundation work

Compatible Excavator Models

  • Doosan: DX800
  • Caterpillar: 365, 390DLME, E355
  • Case: CX800
  • LOVOL: FR600E2-HD, FR600F-HD
  • SDL: E6600F, E6650F, E6600HB, E6600HB PLUS, E6650H
  • LiuGong: CLG965E, CLG960F
  • Hitachi: EX800
  • Sany: SY650, SY600, SY600H, SY650H
  • SUNWARD: SWE650FB
  • TZ: TZ650
  • Volvo: EC700
  • Komatsu: PC600/650, PC750/800
  • XCMG: XE700, XE900, XE600DK, XE600GK
  • ZOOMLION: ZE650EK-10, ZE685EK-10, ZE620G, ZE620GK, ZE650G, ZE650GK

Standard Accessories Included with Each Breaker

  • 2 pcs chisels
  • 2 pcs oil hoses
  • 1 pc seal kit
  • 1 pc N₂ gas bottle
  • 1 pc toolbox
