The Beilite BLT-100 Side Mounted Hydraulic Hammer for 10~14t

BLT-100 Hydraulic Hammer for 10~14 ton Backhoe

The Beilite BLT-100 Hydraulic Hammer Breaker for 10~14 ton Excavators, Loaders, Backhoes & other Brands

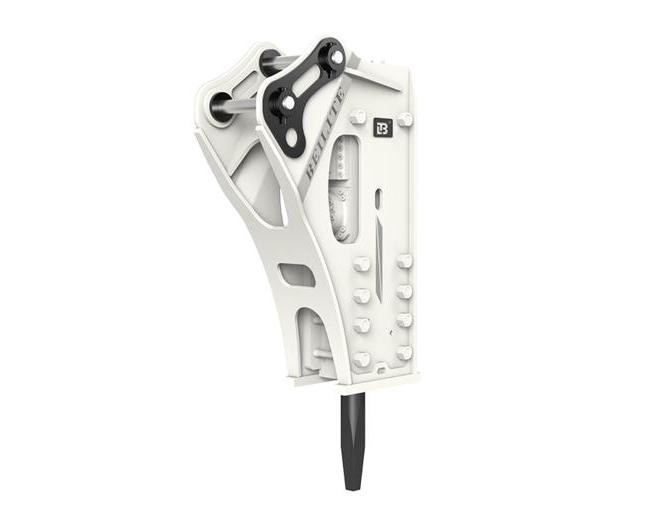

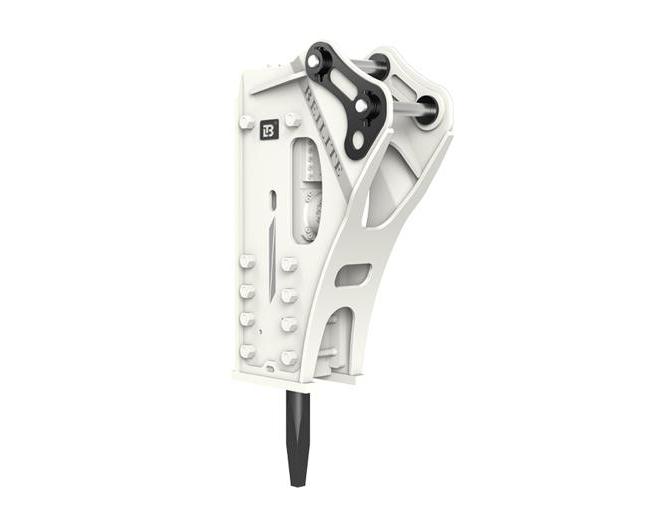

Ini Beilite BLT-100 Side Mounted Hydraulic Hammer provides powerful impact force tailored for ekskavator berukuran sedang. Part of the professional range, it features an optimized desain segitiga that enhances stability and material clearance efficiency. Its simplified structure and reduced component count ensure superior reliability dan easier maintenance for demanding construction applications.

Keunggulan Utama

Peningkatan Stabilitas Struktural: Low-profile mounting improves operational control.

Pemutusan Berkinerja Tinggi: 350-700 BPM impact rate with a 100 mm chisel diameter.

Mengurangi Perawatan: Simplified design minimizes potential failure points.

Efficient Debris Clearance: Triangular configuration allows better material sweeping.

Konstruksi Tugas Berat: 835 kg robust build for extended service life.

Parameter

Panjang Total Tipe yang Dipasang di Samping	2001mm
Berat Total Tipe yang Dipasang di Samping	835kg
Diameter Pahat	100mm
Aliran Minyak yang Bekerja	80 ~ 110l / menit
Tekanan Bantuan	210bar
Tekanan Kerja	150 ~ 170bar
Tekanan Nitrogen Kepala Belakang	14 ~ 17bar
Tekanan Nitrogen Akumulator	55 ~ 60bar
Tingkat Dampak	350 ~ 700bpm
Diameter Selang Minyak	3/4 inci
Panjang Pahat	1000mm
Excavator yang Berlaku	10~14t

Spesifikasi Teknis

Parameter	Nilai
Model	BLT-100 Triangular Hydraulic Breaker
Total Length (Side Mount)	2001mm
Berat Total	835kg
Diameter Pahat	100mm
Panjang Pahat	1000mm
Aliran Minyak yang Bekerja	80-110 l/min
Tekanan Bantuan	210bar
Tekanan Kerja	150-170bar
Tekanan Nitrogen Kepala Belakang	14-17bar
Tekanan Nitrogen Akumulator	55-60bar
Tingkat Dampak	350-700bpm
Diameter Selang Minyak	3/4 inci
Berat Excavator yang Berlaku	10-14t

Primary Applications

Quarry operations and rock excavation
Konstruksi jalan dan pengangkatan aspal
Pembongkaran struktur beton bertulang
Foundation work and trench digging
Mining and tunneling applications

Model Excavator yang Kompatibel

Doosan: DX140
Kato: HD512
JCB: JS110 / 130
Ulat: 311 / 312D / 313D / 314
Kasus: CX130 / 135
LiuGong: LG915 / LG150
Hitachi: ZAX120 / 130W
Sany: SY115 / 135-8
Kobelco: SK100 / 115 / 120 / 135 / 140
Volvo: EC120 / 130 / 140
Hyundai: R110 / 130
Komatsu: PC100 / 110 / 120-6 / 120-7 / 130-7
XCMG: XE130
Takeuchi: TB1140
Sumitomo: SH100 / 120 / 125 / 130 / 135

Mengapa Memilih Pemecah Batu Hidraulik Kami?

The BLT-100 Side Mounted Hydraulic Hammer stands out in its class with superior power-to-weight ratio and exceptional material clearance capabilities. Its optimized hydraulic system ensures efficient energy transfer while the rugged construction guarantees longevity in tough working environments. The triangular design provides better visibility and control compared to conventional hydraulic demolition hammers.

Aksesori Standar yang Disertakan dengan Setiap Pemutus

2 buah pahat
2 buah selang minyak
Kit segel 1 pc
1 buah botol gas N₂
1 kotak peralatan pc
