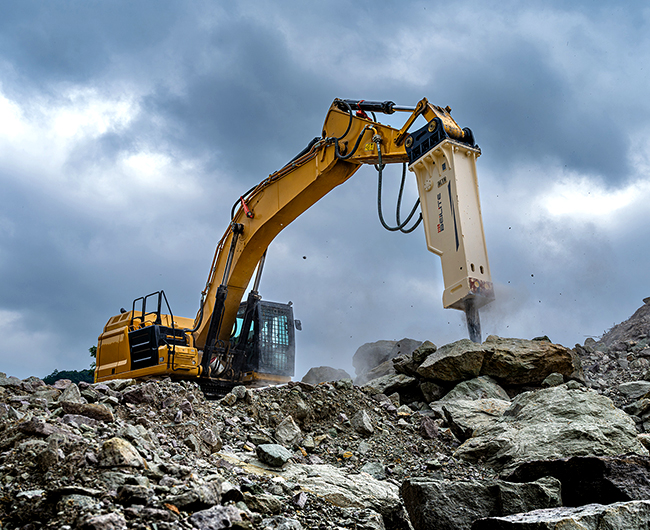

Beilite BLT-185 to BLT-280 Heavy Series: Maximum Impact for 50 to 350 Ton Carriers

The Beilite BLT-185 to BLT-280 Heavy-duty hydraulic breakers deliver unmatched impact power for 50-350 ton excavators, loaders, and backhoes. Built for demanding mining, quarrying, and large-scale demolition projects, they ensure superior performance, durability, and efficiency in the toughest working conditions.

Top heavy-duty hydraulic breakers

Machinery supplies high-resilience rubber parts with long service life and precision fit.

All products are lab-tested for durability and engineered to meet or exceed OEM performance standards.

Building Demolition

Efficiently break reinforced concrete, walls, and foundations for safe and controlled structure removal.

Road and Bridge Construction

Crush old pavement, piers, and decks for infrastructure renovation and repair projects.

Mining and Quarrying

Break hard rock and oversize boulders to improve material handling and reduce blasting requirements.

Trenching and Excavation

Cut through compacted soil, rock, and concrete to prepare trenches for pipelines and cables.

70+ internationally leading precision machines (DMG, MORI, DOOSAN, etc.) ensure component accuracy meets design specs.

State-of-the-art testing equipment guarantees every product passes comprehensive precision checks.

30+ member innovation driven R&D team.

$2M annual R&D budget drives innovation in industry core technologies.

Get A Free Quote Now

Applications

Concrete Recycling

Process demolished concrete on-site for reuse, reducing waste and project costs.

Tunnel and Foundation Work

Assist in controlled excavation, shaping tunnel profiles, and removing rock for stable foundation preparation.

Heavy-duty BLT-185 to BLT-280 Series Hydraulic Breakers Characteristics

Heavy-duty Hydraulic Breakers Characteristics

Parameters Unit BLTB-185 BLTE-190 BLTB-195 BLTB-200 BLTB-245 BLTB-260 BLTB-280
Total weight (Silenced type) kg 5180 5300 5420 5580 1198 12166 14753
Total weight (Wall-mounted type) kg 5800 6122 6242 6402 12540 13600
Total weight (Side-mounted type) kg 5120 5240 5360 5520 11000 12300 14720
Length without drill rod (Silenced type) mm 3260 3260 3260 3260 4237 4312 4565
Total length (Silenced type) mm 4040 4040 4040 4050 5237 5352 5768
Length without drill rod (Wall-mounted type) mm 316B 3168 3168 3168 4114 4140 4418
Total length (Wall-mounted type) mm 4016 4016 4016 4036 5186 5252 5693
Length without drill rod (Side-mounted type) mm 2535 2535 2535 2535 3225 3205 3488
Total length (Side-mounted type) mm 3363 3363 3363 3383 4290 4306 4754
Total height (Silenced type) mm 950 950 950 950 1200 1240 1386
Total height (Top-mounted type) mm 1090 1090 1090 1090 1330 1330 1440
Total height (Side-mounted type) mm 1800 1800 1800 1800 2190 2335 2451
Motor/Core length (with drill rod) mm 3453 3453 3457 3479 4287 4286 4697
Motor/Core length (without drill rod) mm 2392 2392 2396 2398 3115 3115 3363
Working flow/Operating flow rate Vmin 230-280 240-290 260-310 280-330 450-550 490-590 50-650
Setting pressure/Set pressure bar 300 300 310 330 350 350 350
Working pressure/Operating pressure bar 250-270 250~270 260~280 280~300 300~330 300~330 300~330
Impact frequency/Blow frequency bpm 100-140 100~140 100~140 10~130 70~100 70-100 60-90
Drill rod/Tool diameter mm 185 190 195 200 245 260 280
Drill rod/Tool length mm 1600 1600 1600 1620 2050 2100 2300
Oil tube/Hose size inch 114 114 114 11/4 112 112 112
Back head gas pressure/Rear cylinder pressure bar 27-30 27~30 30~33 27~30 3235 32-35 35-38
Accumulator gas pressure bar 65-70 65-70 65~70 65~70 75-80 75-80 75-80
Noise level/Sound power level m 45~50 45~50 48-52 50-55 60-65 60-65 60-65
Noise level in decibels (dB) dB 93.5 94 94.3 94.8 96.3 96.3 96.3
Compatible excavator t 45-55 45-55 50-60 50-65 90~130 90-160 120-200
Impact energy J 24000 25400 28000 29800 49000 56000 69000

Specific Heavy Specific BLT Series

Parameters Unit BLTB-205-2 BLTB-210L2 BLTB-215-6 BLTB-215- BLTB-220-2 BLTB-230-2 BLTB-235-2
Total weight (Silenced type) kg 6832 7052 7222 7453 9601 10207 0207
Total weight (Wall-mounted type) kg 8656 8877 9098 11255 12040
Total weight (Side-mounted type) kg 6750 7600 7900 8000 8900 9680 9860
Length without drill rod (Silenced type) mm 3450 3635 3735 3998 4086 4126
Total length (Silenced type) mm 4378 4483 4625 4587 4846 5024 5064
Length without drill rod (Wall-mounted type) mm 3550 3550 3660 3660 3959 4009 4009
Total length (Wall-mounted type) mm 4574 447 4556 4556 4890 5029 5029
Length without drill rod (Side-mounted type) mm 2857 2695 2967.5 2967.5 3040 3110 3110
Total length (Side-mounted type) mm 3846 3797 3869 3869 3954 4110 4180
Total height (Silenced type) mm 1120 1120 1120 1124 1160 1162 1162
Total height (Top-mounted type) mm 1230 1230 1230 1230 1300 1300 1300
Total height (Side-mounted type) mm 1850 2020 2022 2022 1995 2105 2105
Motor/Core length (with drill rod) mm 3715 3660 3761 3761 3835 4063 4103
Motor/Core length (without drill rod) mm 2656 2678 2780 2780 2855 2993 3033
Working flow/Operating flow rate Vmin 320-380 340-400 350-410 360-420 390450 420-480 420-480
Setting pressure/Set pressure bar 330 350 350 350 350 350 350
Working pressure/Operating pressure bar 280~300 280~300 280~300 280~300 300~330 300~330 300~330
Impact frequency/Blow frequency bpm 100-130 90~120 90~120 90~120 80-110 80~110 80~110
Drill rod/Tool diameter mm 205 210 215 215 220 230 235
Drill rod/Tool length mm 1750 1800 1800 1800 1900 1950 1950
Oil tube/Hose size inch 112 112 112 11/2 112 112 112
Back head gas pressure/Rear cylinder pressure bar 32-35 32-35 32-35 32-35 32-35 32-35 32-35
Accumulator gas pressure bar 75-80 75-80 75-80 75-80 75-80 75-80 75-80
Noise level/Sound power level m 50-55 50-55 50~55 50-55 55-60 60~65 60-65
Noise level in decibels (dB) dB 94.8 94.8 84.8 94.8 95.6 96.3 96.3
Compatible excavator t 55-65 60-75 65~75 65~75 68-85 75-100 75-100
Impact energy J 33000 36500 38000 39500 41500 44700 44700
